Cold Room and Sandwich Panels

Frigo System produces insulated panels for cold room walls, ceilings and floors. Choose the panel that suits your project:

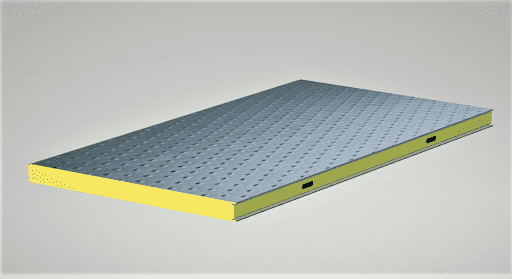

Cold Room Floor Panel

Floor Panel

Cold Storage Sandwich Panels

Cold Room Panels

Cold Room Sandwich Panel

Camlock Sandwich Panels

Which Cold Room Panel Do You Need?

The right panel depends on how the room is built, how tall it is and whether it may be moved later.

PanelBest forCoreThickness
Camlock sandwich panelWalls and ceilings with male-female cam locks. Suits rooms with panels over 9 m and rooms that may be movedPUR or PIR80–200 mm
Cold room panelWalls and ceilings with double tongue-and-groove jointsPUR or PIR60–200 mm
Floor panelInsulated floors with a non-slip surface and a 2500 kg/m² static loadPUR60–200 mm

Panel Thickness by Room Temperature

Room typeTemperatureRecommended panel
Cool room+10 to +15 °C60 mm
Chill room0 to +5 °C80 mm
Low chill / light freeze-5 to -10 °C100 mm
Freezer roomTo -15 °C120 mm
Deep freeze room-18 to -30 °C150 mm
Blast freezer-35 to -40 °C200 mm

Values are based on a +35 °C outside temperature and a 10 W/m² heat gain limit. Final selection depends on site climate and project conditions.

Long cold room wall of white insulated panels during installation in a hall

Core and Surface Options

  • Core: PUR (polyurethane) or PIR (polyisocyanurate) rigid foam.
  • Skins: 0.50 mm painted galvanized steel sheet in RAL 9002, with stainless steel, PVC or PPGI depending on use.
  • Coatings: Polyester, PVdF, Plastisol and PVC.
  • Colours: Available from the RAL catalogue.

What Determines Cold Room Panel Prices?

Cold room panels are priced per square metre, but a single list price would be misleading. The factors that shape the quotation are:

  • Thickness: Between a 60 mm cool room panel and a 150–200 mm freezer room or blast freezer room panel, the amount of foam, and therefore the price, changes considerably.
  • Core: PUR or PIR. PIR is preferred in projects where fire behaviour matters.
  • Joint type: Tongue-and-groove panel or camlock panel.
  • Sheet and coating: 0.50 mm pre-painted galvanised steel is standard; stainless steel, PVC or PPGI facings raise the price.
  • Quantity and panel lengths: Total square metres, panel lengths and joint profiles.
  • Delivery terms: EXW (ex works) or CIF to the port of destination.

To see the total cost of an installed room, read our cold room price guide. Send the room dimensions and temperature through our contact page; we will send the panel list and quotation within 24 hours.

Cold store under construction in a warehouse, with insulated panel walls and a pallet of FrigoSys panels on the floor

Projects Built with These Panels

Is a Cold Room Panel the Same as a Roof and Wall Sandwich Panel?

No. Both consist of a foam core between two steel sheets, but a cold room panel is designed for a different job:

  • Thicker insulation: Cold room panels are made 60–200 mm thick depending on the room temperature; the lower the temperature, the thicker the panel.
  • Air and vapour tightness: Tongue-and-groove or camlock joints stop warm, humid air from entering the room and prevent condensation and icing at the panel joints.
  • Hygienic inner surface: Smooth, easy-to-clean pre-painted galvanised steel, or a stainless steel facing for food plants.
  • A complete system: Walls, ceiling, floor panel, doors and refrigeration unit are calculated together.

Cold rooms built with roof or wall cladding panels use more energy and ice up in the corners. To choose the right panel for your sandwich panel cold room project, send us the room temperature and dimensions.

Frequently Asked Questions

How do I choose the panel thickness?
Start from the table above. Final selection depends on site climate and project conditions, so send us the room temperature and project location for a specific recommendation.

Which panel suits a tall room?
Camlock panels are used in rooms with panels over 9 m, without extra steel profiles in the wall.

Can the panels be dismantled?
Yes. Rooms built with camlock panels can be dismantled, moved and re-installed easily.

How long does production take?
3–7 weeks on average, depending on the project and order status.

Do you export cold room panels?
Yes. Packing, export documents and logistics are handled in-house, and we export to more than 40 countries. U.S. buyers can see our panel thickness in inches and R-values.
